Cleveland

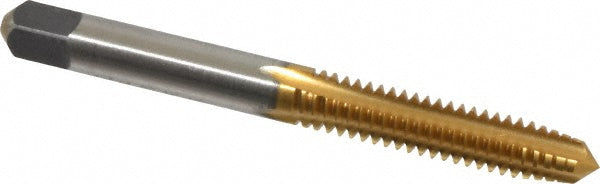

1/4-20 UNC High Speed Steel Standard Tap, TiN - Cleveland C55116
MFR# C55116Series 1002TN
$15.07List $19.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/4-20
CoatingTiN
Description
The Cleveland C55116 is a 1/4-20 UNC High Speed Steel Standard tap with a TiN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferPlug
Class of fit3B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length in2-1/2
OversizeNo
Shank diameter0.2500
Square length in5/16
Square size0.1910
Tap typeStandard
Threads per inch20
Thread directionRight Hand
Thread length in1
Thread limitH3
Thread size in1/4-20
Thread standardUNC
