Cleveland

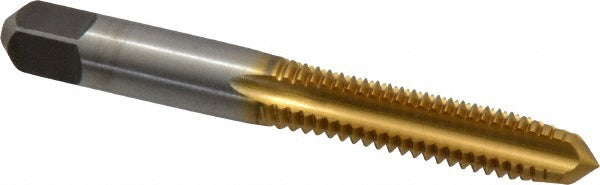

3/8-16 UNC High Speed Steel Standard Tap, TiN - Cleveland C55124
MFR# C55124Series 1002TN
$21.28List $27.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/8-16
CoatingTiN
Description
The Cleveland C55124 is a 3/8-16 UNC High Speed Steel Standard tap with a TiN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferPlug
Class of fit3B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length in2-15/16
OversizeNo
Shank diameter0.3180
Square length in3/8
Square size0.2380
Tap typeStandard
Threads per inch16
Thread directionRight Hand
Thread length in1-1/4
Thread limitH3
Thread size in3/8-16
Thread standardUNC
