Cleveland

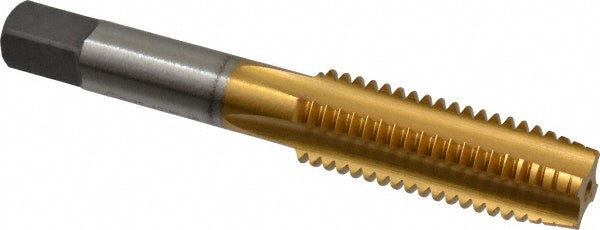

9/16-12 UNC High Speed Steel Standard Tap, TiN - Cleveland C55136
MFR# C55136Series 1002TN
$57.66List $73.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size9/16-12
CoatingTiN
Description
The Cleveland C55136 is a 9/16-12 UNC High Speed Steel Standard tap with a TiN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length in3-19/32
OversizeNo
Shank diameter0.4290
Square length in1/2
Square size0.3220
Tap typeStandard
Threads per inch12
Thread directionRight Hand
Thread length in1-21/32
Thread limitH3
Thread size in9/16-12
Thread standardUNC
