Cleveland

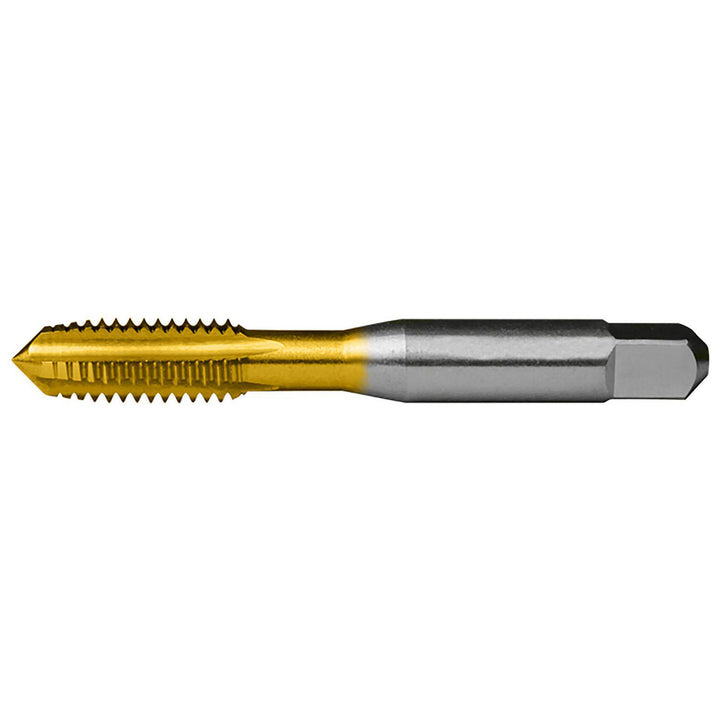

#4-40 UNC High Speed Steel Standard Tap, TiN - Cleveland C55160
MFR# C55160Series 1002TN
$17.39List $22.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#4-40
CoatingTiN
Description
The Cleveland C55160 is a #4-40 UNC High Speed Steel Standard tap with a TiN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Number of flutes3
Overall length in1-7/8
OversizeNo
Shank diameter0.1410
Square length in3/16
Square size0.1100
Tap typeStandard
Threads per inch40
Thread directionRight Hand
Thread length0.3100
Thread limitH2
Thread size in#4-40
Thread standardUNC
