Cleveland

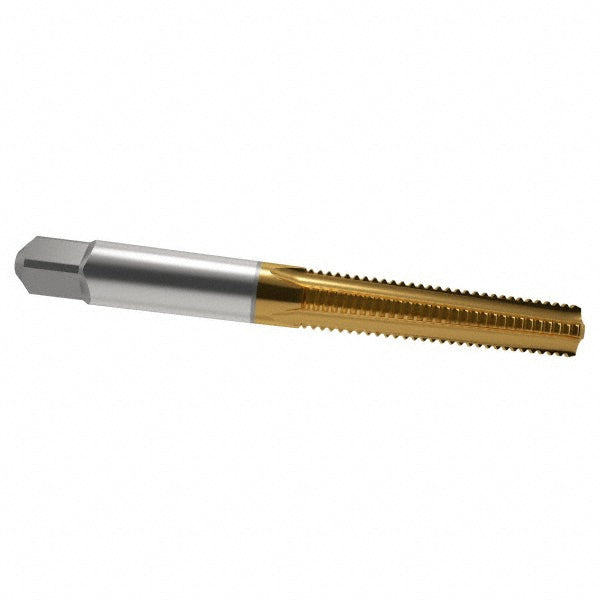

5/16-18 UNC High Speed Steel Standard Tap, TiN - Cleveland C55220
MFR# C55220Series 1003TN
$18.71List $24.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/16-18
CoatingTiN
Description
The Cleveland C55220 is a 5/16-18 UNC High Speed Steel Standard tap with a TiN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferBottoming
Class of fit3B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length in2-23/32
OversizeNo
Shank diameter0.3180
Square length in3/8
Square size0.2380
Tap typeStandard
Threads per inch18
Thread directionRight Hand
Thread length in1-1/8
Thread limitH3
Thread size in5/16-18
Thread standardUNC
