Cleveland

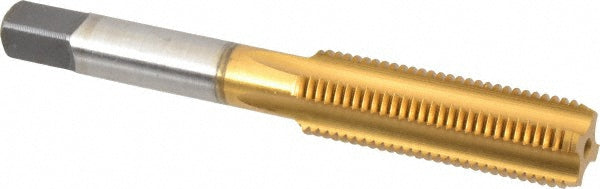

7/16-20 UNF High Speed Steel Standard Tap, TiN - Cleveland C55230
MFR# C55230Series 1003TN
$31.95List $40.97
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size7/16-20
CoatingTiN
Description
The Cleveland C55230 is a 7/16-20 UNF High Speed Steel Standard tap with a TiN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferBottoming
Class of fit2B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length in3-5/32
OversizeNo
Shank diameter0.3230
Square length0.4062
Square size0.2420
Tap typeStandard
Threads per inch20
Thread directionRight Hand
Thread length in1-7/16
Thread limitH3
Thread size in7/16-20
Thread standardUNF
