Cleveland
5/8-11 UNC High Speed Steel Standard Tap, TiN - Cleveland C55240
MFR# C55240Series 1003TN
$66.74List $85.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-11
CoatingTiN
Description

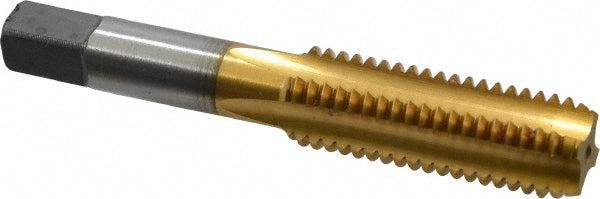

The Cleveland C55240 is a 5/8-11 UNC High Speed Steel Standard tap with a TiN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferBottoming
Class of fit3B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length in3-13/16
OversizeNo
Shank diameter0.4800
Square length in9/16
Square size0.3600
Tap typeStandard
Threads per inch11
Thread directionRight Hand
Thread length in1-13/16
Thread limitH3
Thread size in5/8-11
Thread standardUNC
