Cleveland
3/4-16 UNF High Speed Steel Standard Tap, TiN - Cleveland C55246
MFR# C55246Series 1003TN
$89.47List $114.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-16
CoatingTiN
Description

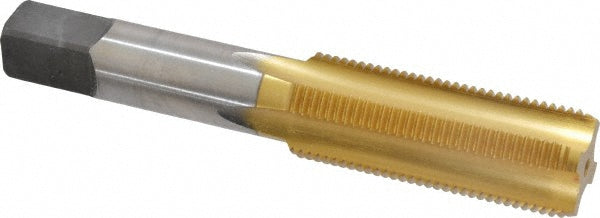

The Cleveland C55246 is a 3/4-16 UNF High Speed Steel Standard tap with a TiN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferBottoming
Class of fit3B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length in4-1/4
OversizeNo
Shank diameter0.5900
Square length in11/16
Square size0.4420
Tap typeStandard
Threads per inch16
Thread directionRight Hand
Thread length in2
Thread limitH3
Thread size in3/4-16
Thread standardUNF
