Cleveland
7/8-9 UNC High Speed Steel Standard Tap, TiN - Cleveland C55248
MFR# C55248Series 1003TN
$126.33List $162.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size7/8-9
CoatingTiN
Description

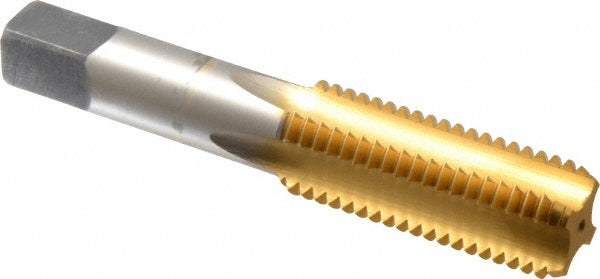

The Cleveland C55248 is a 7/8-9 UNC High Speed Steel Standard tap with a TiN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferBottoming
Class of fit3B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length in4-11/16
OversizeNo
Shank diameter0.6970
Square length in3/4
Square size0.5230
Tap typeStandard
Threads per inch9
Thread directionRight Hand
Thread length in2-7/32
Thread limitH4
Thread size in7/8-9
Thread standardUNC
