Cleveland

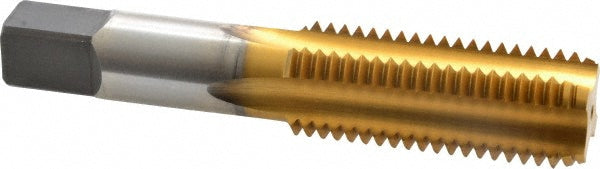

1-8 UNC High Speed Steel Standard Tap, TiN - Cleveland C55252
MFR# C55252Series 1003TN
$164.13List $210.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-8
CoatingTiN
Description
The Cleveland C55252 is a 1-8 UNC High Speed Steel Standard tap with a TiN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferBottoming
Class of fit3B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length in5-1/8
OversizeNo
Shank diameter0.8000
Square length in13/16
Square size0.6000
Tap typeStandard
Threads per inch8
Thread directionRight Hand
Thread length in2-1/2
Thread limitH4
Thread size in1-8
Thread standardUNC
