Cleveland

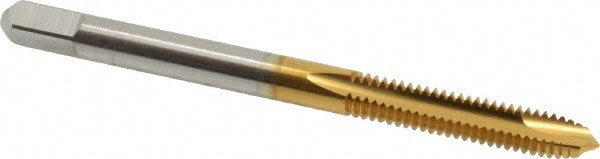

#8-32 UNC High Speed Steel Tap, TiN - Cleveland C55303
MFR# C55303Series 1011TN
$17.64List $22.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#8-32
CoatingTiN
Description
The Cleveland C55303 is a #8-32 UNC High Speed Steel tap with a TiN finish. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Steel
Neck length in25/64
Number of flutes2
Overall length in2-1/8
OversizeNo
Shank diameter0.1680
Square size (mm)3.33
Threads per inch32
Thread directionRight Hand
Thread length in3/8
Thread limitH2
Thread size in#8-32
Thread standardUNC
