Cleveland
#10-24 UNC High Speed Steel Tap, TiN - Cleveland C55309
MFR# C55309Series 1011TN
$20.28List $26.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#10-24
CoatingTiN
Description

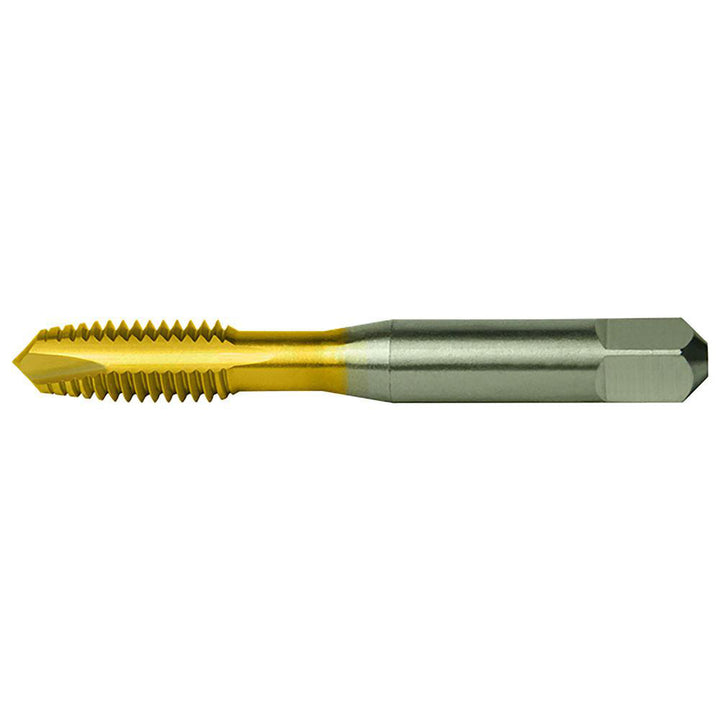

The Cleveland C55309 is a #10-24 UNC High Speed Steel tap with a TiN finish. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Steel
Neck length in25/64
Number of flutes2
OversizeNo
Shank diameter0.1940
Square size (mm)3.86
Threads per inch24
Thread directionRight Hand
Thread length in1/2
Thread limitH7
Thread size in#10-24
Thread standardUNC
