Cleveland

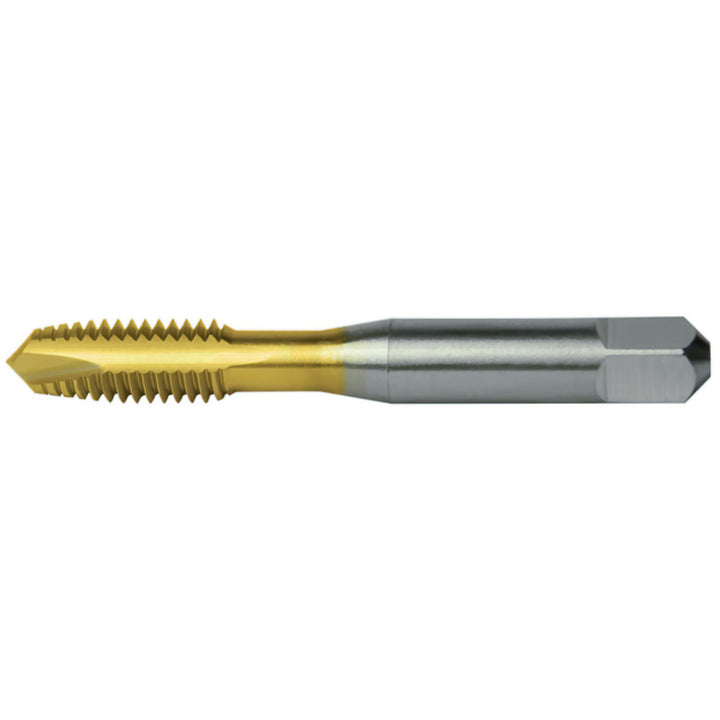

1/4-20 UNC HSS Spiral Point Tap, TiN - Cleveland C55316
MFR# C55316Series 1011-TN
$15.65List $20.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size1/4-20
CoatingTiN
Description
The Cleveland C55316 is a 1/4-20 UNC HSS Spiral Point tap with a TiN finish. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiN
Coolant throughNo
Interrupted threadNo
MaterialHSS
Material applicationSteel; Cast Iron
Measurement typeFractional Inch
Neck length in25/64
Number of flutes2
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square size (mm)4.85
StyleSpiral Point
Threads per inch20
Thread directionRight Hand
Thread length in1
Thread limitH3
Thread pitch0.05
Thread size in1/4-20
Thread standardUNC
