Cleveland
5/16-18 UNC High Speed Steel Tap, TiCN - Cleveland C55320
MFR# C55320Series 1011TN
$17.80List $22.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size5/16-18
CoatingTiCN
Description

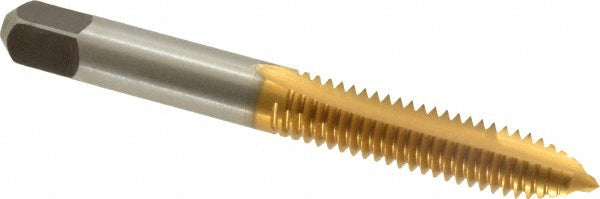

The Cleveland C55320 is a 5/16-18 UNC High Speed Steel tap with a TiCN finish. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishTiCN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel
Neck length in29/64
Number of flutes2
Overall length in2-23/32
OversizeNo
Shank diameter0.3180
Square size (mm)6.05
Threads per inch18
Thread directionRight Hand
Thread length in11/16
Thread limitH3
Thread size in5/16-18
Thread standardUNC
