Cleveland

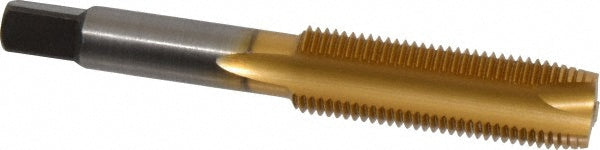

1/2-20 UNF High Speed Steel Tap, TiN - Cleveland C55334
MFR# C55334Series 1011TN
$35.70List $45.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-20
CoatingTiN
Description
The Cleveland C55334 is a 1/2-20 UNF High Speed Steel tap with a TiN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel
Neck length in47/64
Number of flutes3
Overall length in3-3/8
OversizeNo
Shank diameter0.3670
Square size (mm)6.99
Threads per inch20
Thread directionRight Hand
Thread length in15/16
Thread limitH3
Thread size in1/2-20
Thread standardUNF
