Cleveland

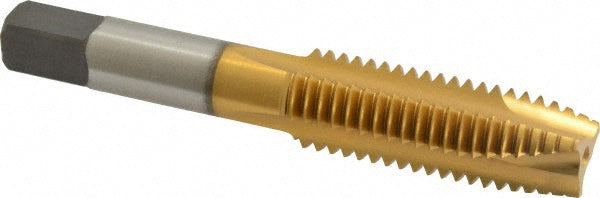

5/8-11 UNC High Speed Steel Tap, TiN - Cleveland C55336
MFR# C55336Series 1011TN
$69.13List $88.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/8-11
CoatingTiN
Description
The Cleveland C55336 is a 5/8-11 UNC High Speed Steel tap with a TiN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel
Neck length in47/64
Number of flutes3
Overall length in3-13/16
OversizeNo
Shank diameter0.4800
Square size (mm)9.14
Threads per inch11
Thread directionRight Hand
Thread length in1-3/32
Thread limitH3
Thread size in5/8-11
Thread standardUNC
