Cleveland
1/4-20 UNC High Speed Steel Tap, TiN - Cleveland C55348
MFR# C55348Series 1011TN
$18.05List $23.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size1/4-20
CoatingTiN
Description

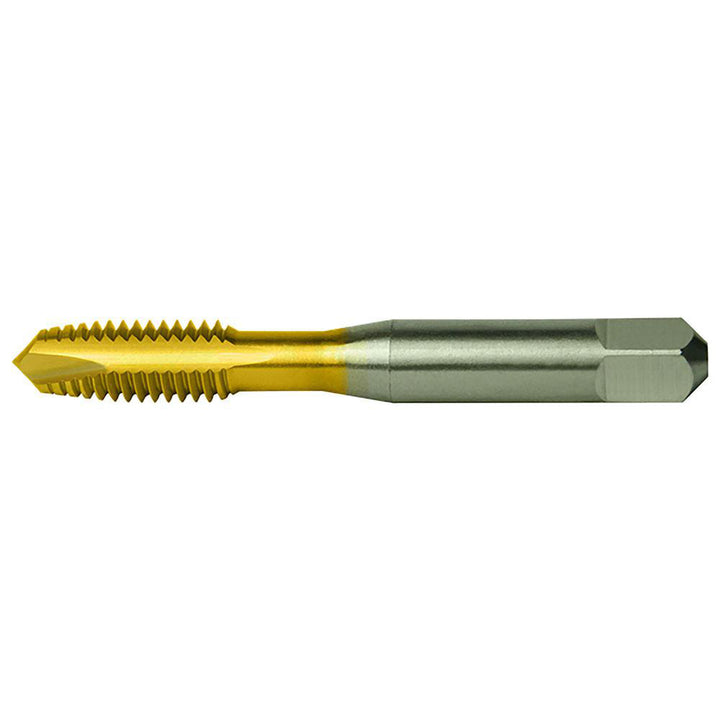

The Cleveland C55348 is a 1/4-20 UNC High Speed Steel tap with a TiN finish. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Steel
Neck length in25/64
Number of flutes2
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square size (mm)4.85
Threads per inch20
Thread directionRight Hand
Thread length in5/8
Thread limitH1
Thread size in1/4-20
Thread standardUNC
