Cleveland

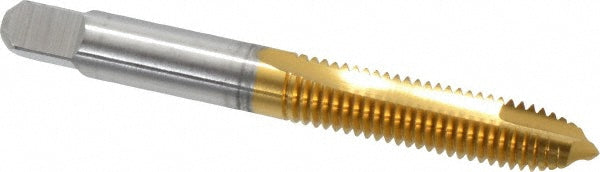

M8 x 1.25 UNC High Speed Steel Tap, TiN - Cleveland C55363
MFR# C55363Series 1011TN
$29.47List $37.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Cleveland C55363 is a UNC High Speed Steel tap with a TiN finish. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Steel
Neck length in29/64
Number of flutes2
Overall length in2-23/32
OversizeNo
Shank diameter0.3180
Square size (mm)6.05
Thread directionRight Hand
Thread length in11/16
Thread limitD5
Thread pitch (mm)1.25
Thread size (mm)M8 x 1.25
Thread standardUNC
