Cleveland

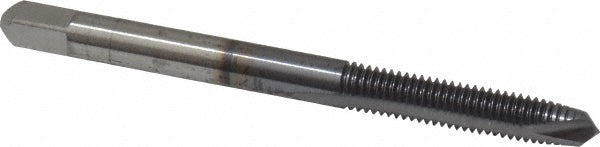

#10-32 UNF High Speed Steel Tap, TiCN - Cleveland C55383
MFR# C55383Series 1011TICN
$18.80List $24.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#10-32
CoatingTiCN
Description
The Cleveland C55383 is a #10-32 UNF High Speed Steel tap with a TiCN finish. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Neck length in25/64
Number of flutes2
Overall length in2-3/8
OversizeNo
Shank diameter0.1940
Square size (mm)3.86
Threads per inch32
Thread directionRight Hand
Thread length in1/2
Thread limitH3
Thread size in#10-32
Thread standardUNF
