Cleveland

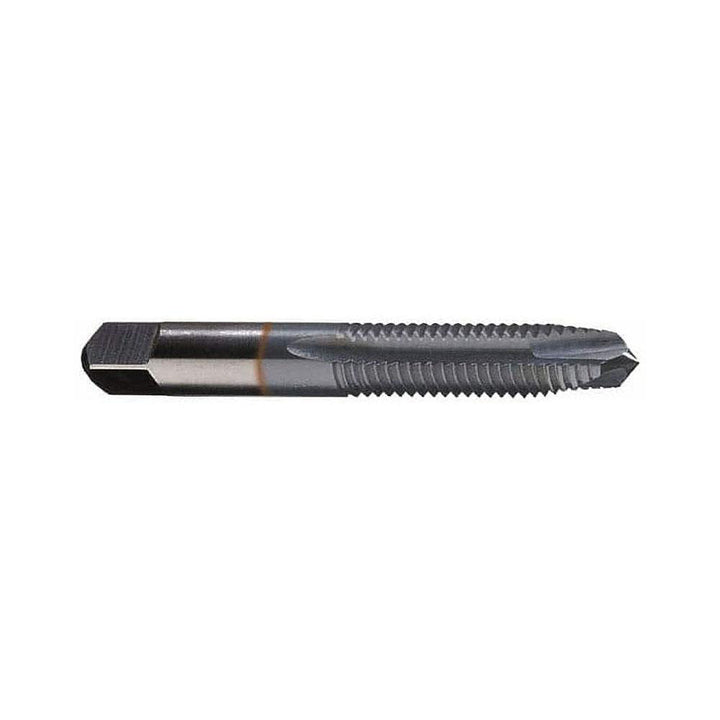

#12-24 UNF High Speed Steel Tap, TiCN - Cleveland C55384
MFR# C55384Series 1011TICN
$20.20List $25.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#12-24
CoatingTiCN
Description
The Cleveland C55384 is a #12-24 UNF High Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Neck length in29/64
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.2200
Square size (mm)4.19
Threads per inch24
Thread directionRight Hand
Thread length in1/2
Thread limitH3
Thread size in#12-24
Thread standardUNF
