Cleveland
1/4-28 UNF High Speed Steel Tap, TiCN - Cleveland C55387
MFR# C55387Series 1011TICN
$21.39List $27.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingTiCN
Description

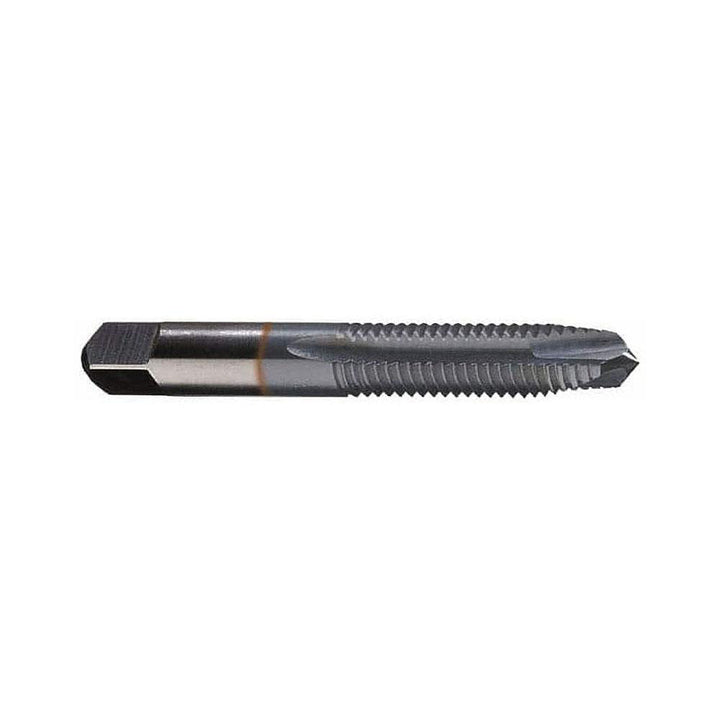

The Cleveland C55387 is a 1/4-28 UNF High Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Neck length in25/64
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square size (mm)4.85
Threads per inch28
Thread directionRight Hand
Thread length in5/8
Thread limitH2
Thread size in1/4-28
Thread standardUNF
