Cleveland

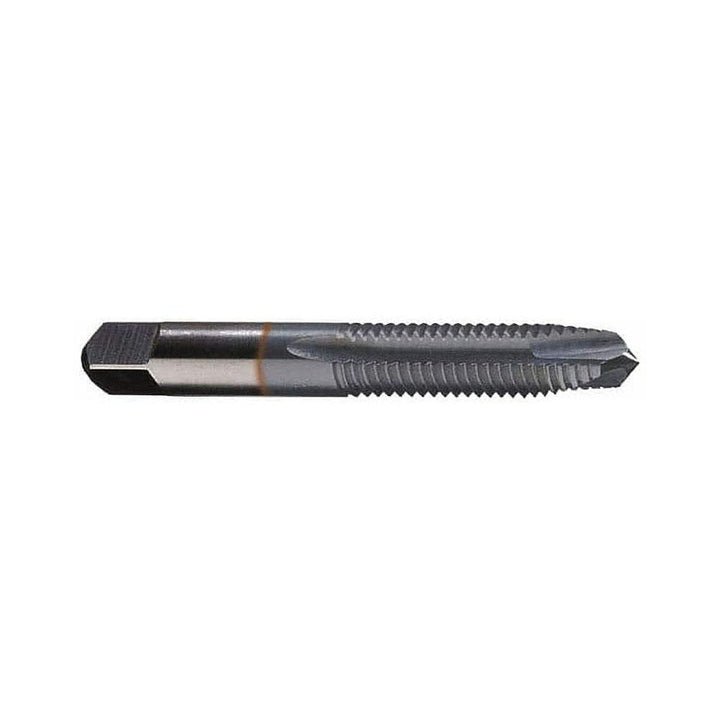

3/8-24 UNF High Speed Steel Tap, TiCN - Cleveland C55391
MFR# C55391Series 1011TICN
$29.80List $38.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
CoatingTiCN
Description
The Cleveland C55391 is a 3/8-24 UNF High Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Neck length0.5100
Number of flutes3
Overall length in2-15/16
OversizeNo
Shank diameter0.3810
Square size (mm)7.26
Threads per inch24
Thread directionRight Hand
Thread length in3/4
Thread limitH3
Thread size in3/8-24
Thread standardUNF
