Cleveland

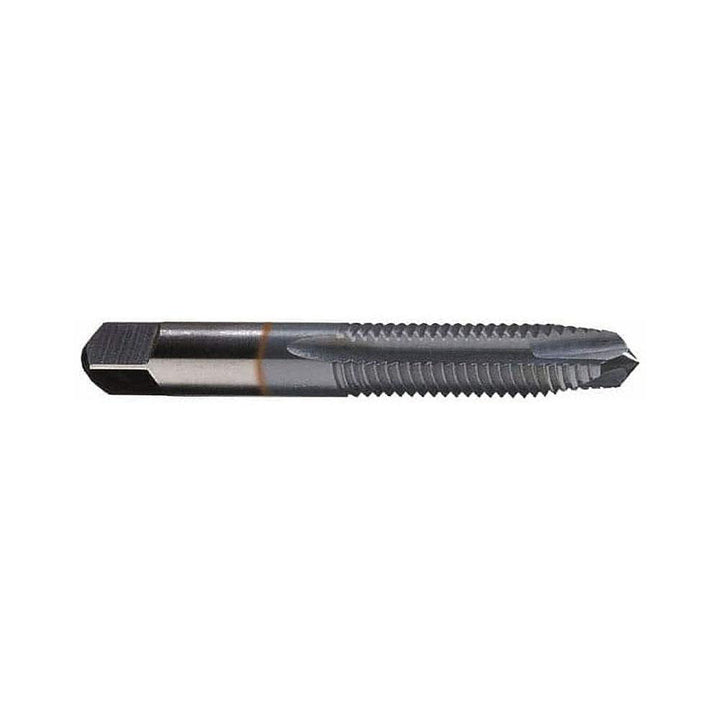

7/16-20 UNF High Speed Steel Tap, TiCN - Cleveland C55392
MFR# C55392Series 1011TICN
$38.22List $49.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-20
CoatingTiCN
Description
The Cleveland C55392 is a 7/16-20 UNF High Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Neck length0.5700
Number of flutes3
Overall length in3-5/32
OversizeNo
Shank diameter0.3230
Square size (mm)6.15
Threads per inch20
Thread directionRight Hand
Thread length in7/8
Thread limitH3
Thread size in7/16-20
Thread standardUNF
