Cleveland

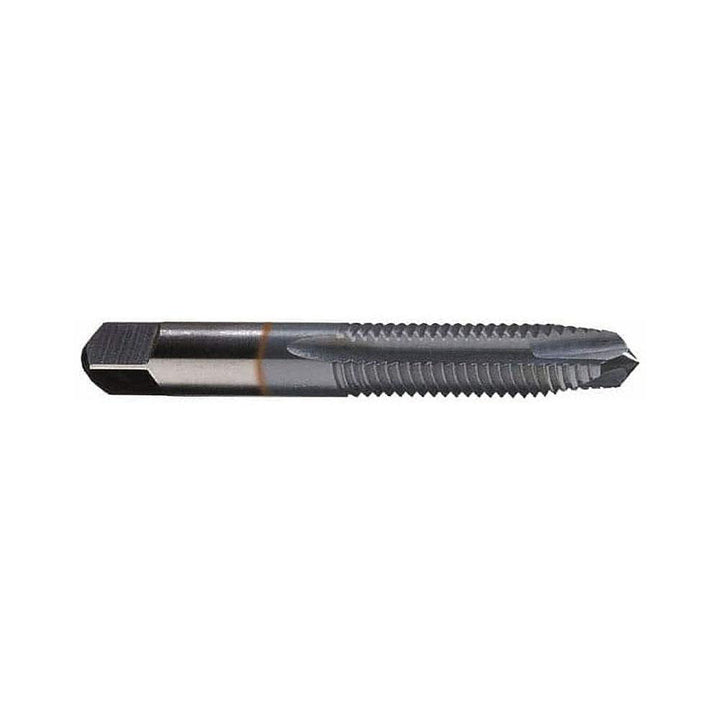

1/2-20 UNF High Speed Steel Tap, TiCN - Cleveland C55395
MFR# C55395Series 1011TICN
$42.69List $54.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-20
CoatingTiCN
Description
The Cleveland C55395 is a 1/2-20 UNF High Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Neck length in47/64
Number of flutes3
Overall length in3-3/8
OversizeNo
Shank diameter0.3670
Square size (mm)6.99
Threads per inch20
Thread directionRight Hand
Thread length in15/16
Thread limitH3
Thread size in1/2-20
Thread standardUNF
