Cleveland

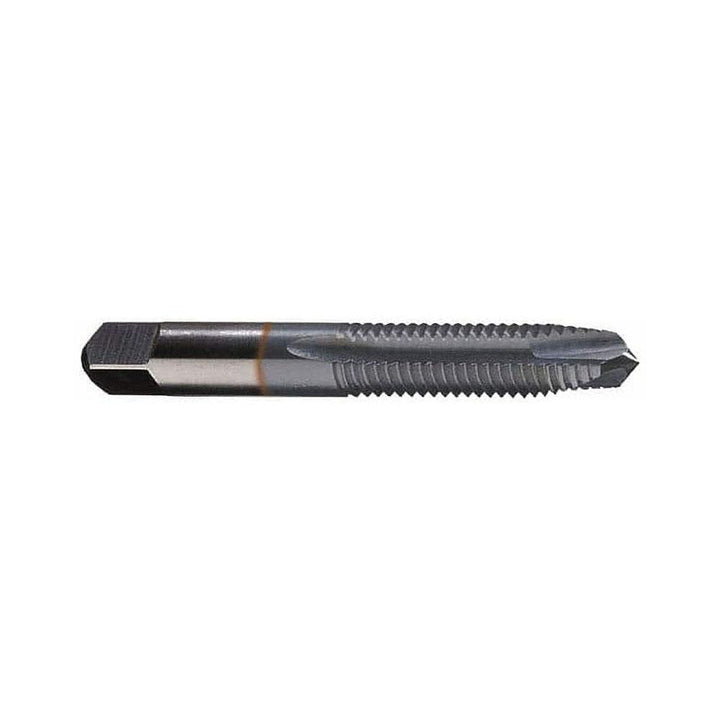

3/4-10 UNF High Speed Steel Tap, TiCN - Cleveland C55398
MFR# C55398Series 1011TICN
$96.36List $123.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/4-10
CoatingTiCN
Description
The Cleveland C55398 is a 3/4-10 UNF High Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Neck length0.7900
Number of flutes3
Overall length in4-1/4
OversizeNo
Shank diameter0.5900
Square size (mm)11.23
Threads per inch10
Thread directionRight Hand
Thread length in1-7/32
Thread limitH3
Thread size in3/4-10
Thread standardUNF
