Cleveland

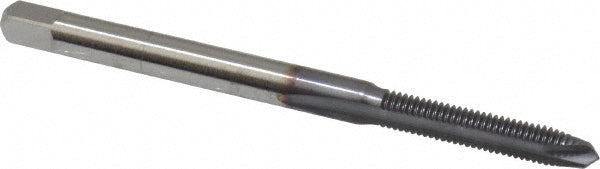

M3 x 0.50 UNF High Speed Steel Tap, TiCN - Cleveland C55415
MFR# C55415Series 1011TICN
$23.52List $30.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiCN
Description
The Cleveland C55415 is a UNF High Speed Steel tap with a TiCN finish. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Neck length in21/64
Number of flutes2
Overall length in1-15/16
OversizeNo
Shank diameter0.1410
Square size (mm)2.79
Thread directionRight Hand
Thread length in5/16
Thread limitD3
Thread pitch (mm)0.50
Thread size (mm)M3 x 0.50
Thread standardUNF
