Cleveland

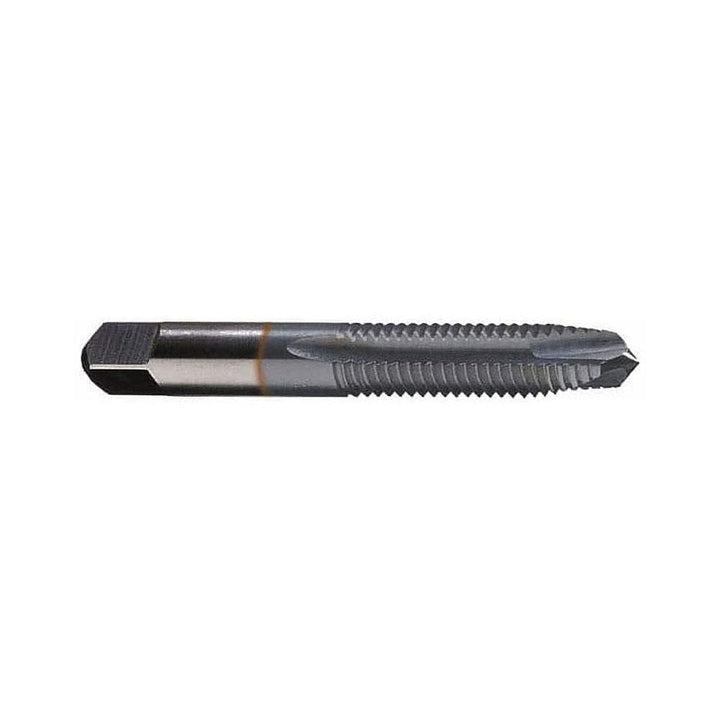

M10 x 1.50 UNF High Speed Steel Tap, TiCN - Cleveland C55420
MFR# C55420Series 1011TICN
$32.01List $41.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The Cleveland C55420 is a UNF High Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Number of flutes3
Overall length in2-15/16
OversizeNo
Shank diameter0.3810
Square size (mm)7.26
Thread directionRight Hand
Thread length in1-1/4
Thread limitD6
Thread pitch (mm)1.50
Thread size (mm)M10 x 1.50
Thread standardUNF
