Cleveland

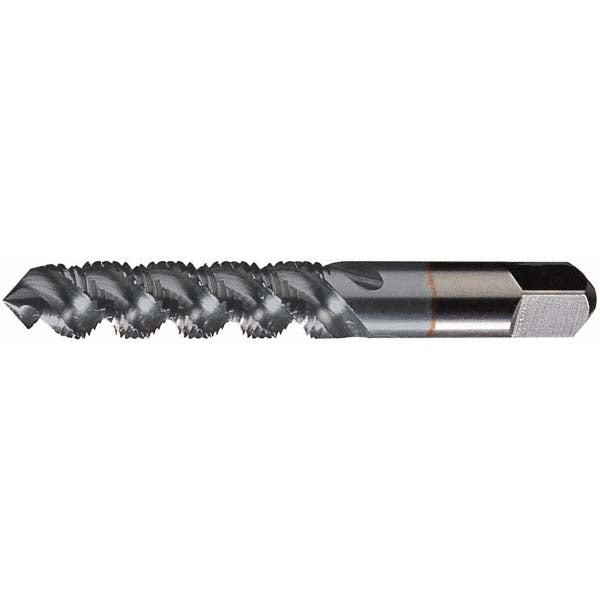

#10-32 UNC High Speed Steel Tap, TIN - Cleveland C55577
MFR# C55577Series 1093TN
$29.78List $38.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
CoatingTIN
Description
The Cleveland C55577 is a #10-32 UNC High Speed Steel tap with a TIN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferPlug
Class of fit2B
Coating finishTIN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle52
MaterialHigh Speed Steel
Material applicationStainless Steel; Steel
Neck length0.3900
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.1940
Square length0.2500
Square size0.1520
Threads per inch32
Thread directionRight Hand
Thread length0.5000
Thread limitH3
Thread size in#10-32
Thread standardUNC
