Cleveland

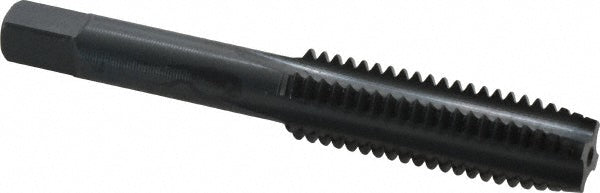

1/2-13 UNC High Speed Steel Standard Tap, Oxide - Cleveland C56020
MFR# C56020Series 1002BO
$27.03List $34.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/2-13
CoatingOxide
Description
The Cleveland C56020 is a 1/2-13 UNC High Speed Steel Standard tap with a Oxide finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferPlug
Class of fit2B
Coating finishOxide
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Number of flutes4
Overall length in3-3/8
OversizeNo
Shank diameter0.3670
Square length in7/16
Square size0.2750
Tap typeStandard
Threads per inch13
Thread directionRight Hand
Thread length0.9400
Thread limitH3
Thread size in1/2-13
Thread standardUNC
