Cleveland

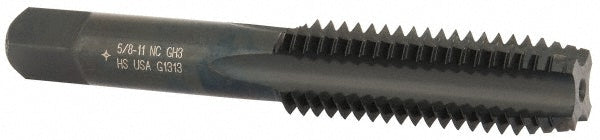

5/8-11 UNC High Speed Steel Standard Tap, Oxide - Cleveland C56028
MFR# C56028Series 1002BO
$55.19List $70.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-11
CoatingOxide
Description
The Cleveland C56028 is a 5/8-11 UNC High Speed Steel Standard tap with a Oxide finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferPlug
Class of fit2B
Coating finishOxide
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Number of flutes4
Overall length3.8130
OversizeNo
Shank diameter0.4800
Square length in9/16
Square size0.3600
Tap typeStandard
Threads per inch11
Thread directionRight Hand
Thread length1.0900
Thread limitH3
Thread size in5/8-11
Thread standardUNC
