Cleveland

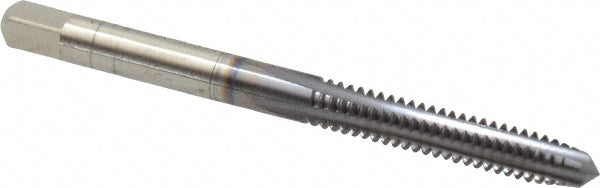

#10-24 UNC High Speed Steel Standard Tap, TiCN - Cleveland C56058
MFR# C56058Series 1002TICN
$16.74List $21.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size#10-24
CoatingTiCN
Description
The Cleveland C56058 is a #10-24 UNC High Speed Steel Standard tap with a TiCN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Number of flutes4
Overall length in2-3/8
OversizeNo
Shank diameter0.1940
Square length in1/4
Square size0.1520
Tap typeStandard
Threads per inch24
Thread directionRight Hand
Thread length in1/2
Thread limitH3
Thread size in#10-24
Thread standardUNC
