Cleveland
#10-32 UNF High Speed Steel Standard Tap, TiCN - Cleveland C56060
MFR# C56060Series 1002TICN
$17.72List $22.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size#10-32
CoatingTiCN
Description

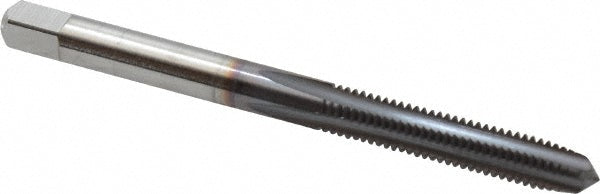

The Cleveland C56060 is a #10-32 UNF High Speed Steel Standard tap with a TiCN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Number of flutes4
Overall length in2-3/8
OversizeNo
Shank diameter0.1940
Square length in1/4
Square size0.1520
Tap typeStandard
Threads per inch32
Thread directionRight Hand
Thread length in1/2
Thread limitH3
Thread size in#10-32
Thread standardUNF
