Cleveland

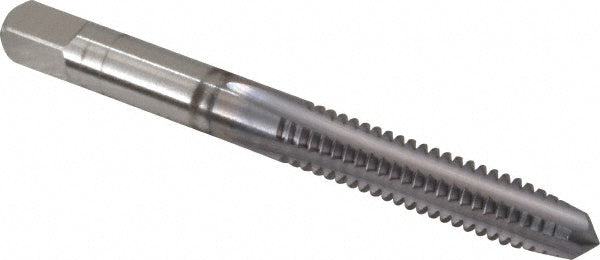

1/4-20 UNC High Speed Steel Standard Tap, TiCN - Cleveland C56062
MFR# C56062Series 1002TICN
$24.91List $31.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/4-20
CoatingTiCN
Description
The Cleveland C56062 is a 1/4-20 UNC High Speed Steel Standard tap with a TiCN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Number of flutes4
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square length in5/16
Square size0.1910
Tap typeStandard
Threads per inch20
Thread directionRight Hand
Thread length0.6300
Thread limitH3
Thread size in1/4-20
Thread standardUNC
