Cleveland
#4-40 UNC High Speed Steel Tap - Cleveland C57047
MFR# C57047Series 1011
$15.31List $19.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#4-40
Description

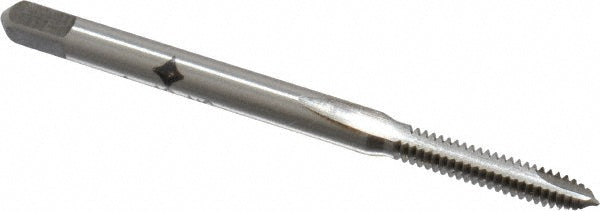

The Cleveland C57047 is a #4-40 UNC High Speed Steel tap. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel
Neck length0.2600
Number of flutes2
Overall length in1-7/8
OversizeNo
Shank diameter0.1410
Square size (mm)2.79
Threads per inch40
Thread directionRight Hand
Thread length in5/16
Thread limitH1
Thread size in#4-40
Thread standardUNC
