Cleveland

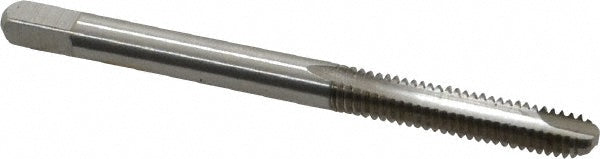

#8-32 UNC High Speed Steel Tap - Cleveland C57086
MFR# C57086Series 1012
$13.36List $17.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#8-32
Description
The Cleveland C57086 is a #8-32 UNC High Speed Steel tap. 2 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAluminum; Copper Alloys; Low Carbon Steel; Magnesium
Neck length in25/64
Number of flutes2
Overall length in2-1/8
OversizeNo
Shank diameter0.1680
Square size (mm)3.33
Threads per inch32
Thread directionRight Hand
Thread length in3/8
Thread limitH3
Thread size in#8-32
Thread standardUNC
