Cleveland

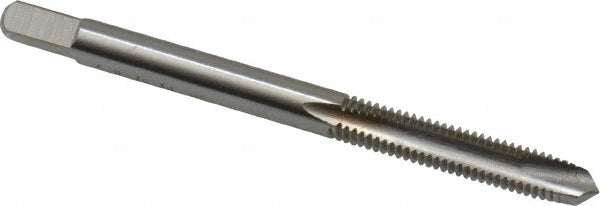

#8-36 UNF High Speed Steel Tap - Cleveland C57089
MFR# C57089Series 1011
$17.11List $21.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#8-36
Description
The Cleveland C57089 is a #8-36 UNF High Speed Steel tap. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B/3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel
Neck length in25/64
Number of flutes2
Overall length in2-1/8
OversizeNo; Yes
Shank diameter0.1680
Square size (mm)3.33
Threads per inch36
Thread directionRight Hand
Thread length in3/8
Thread limitH2
Thread size in#8-36
Thread standardUNF
