Cleveland
#10-24 UNC High Speed Steel Tap - Cleveland C57098
MFR# C57098Series 1012
$12.92List $16.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#10-24
Description

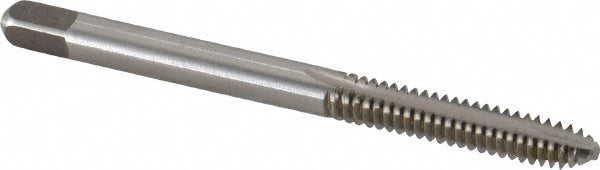

The Cleveland C57098 is a #10-24 UNC High Speed Steel tap. 2 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B/3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAluminum; Copper Alloys; Low Carbon Steel; Magnesium
Neck length in25/64
Number of flutes2
Overall length in2-3/8
OversizeNo
Shank diameter0.1940
Square size (mm)3.86
Threads per inch24
Thread directionRight Hand
Thread length in1/2
Thread limitH3
Thread size in#10-24
Thread standardUNC
