Cleveland

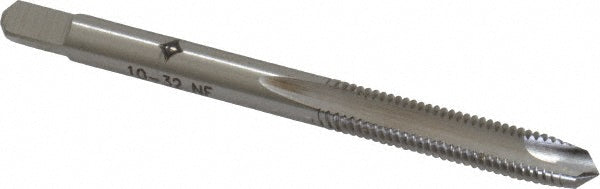

#10-32 UNF High Speed Steel Tap - Cleveland C57106
MFR# C57106Series 1011
$13.74List $17.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#10-32
Description
The Cleveland C57106 is a #10-32 UNF High Speed Steel tap. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel
Neck length in25/64
Number of flutes2
Overall length in2-3/8
OversizeNo; Yes
Shank diameter0.1940
Square size (mm)3.86
Threads per inch32
Thread directionRight Hand
Thread length in1/2
Thread limitH7
Thread size in#10-32
Thread standardUNF
