Cleveland
1/4-20 UNC High Speed Steel Tap - Cleveland C57128
MFR# C57128Series 1011
$12.55List $16.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size1/4-20
Description

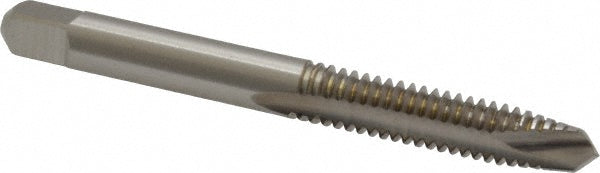

The Cleveland C57128 is a 1/4-20 UNC High Speed Steel tap. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel
Neck length in25/64
Number of flutes2
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square size (mm)4.85
Threads per inch20
Thread directionRight Hand
Thread length in5/8
Thread limitH2
Thread size in1/4-20
Thread standardUNC
