Cleveland

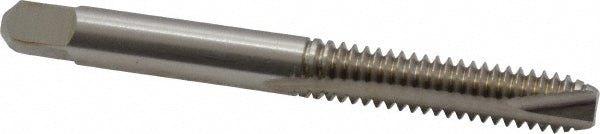

1/4-20 UNC High Speed Steel Tap - Cleveland C57131
MFR# C57131Series 1012
$13.36List $17.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size1/4-20
Description
The Cleveland C57131 is a 1/4-20 UNC High Speed Steel tap. 2 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAluminum; Copper Alloys; Low Carbon Steel; Magnesium
Neck length in25/64
Number of flutes2
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square size (mm)4.85
Threads per inch20
Thread directionRight Hand
Thread length in5/8
Thread limitH3
Thread size in1/4-20
Thread standardUNC
