Cleveland
5/16-24 UNF High Speed Steel Tap - Cleveland C57160
MFR# C57160Series 1011
$12.01List $15.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size5/16-24
Description

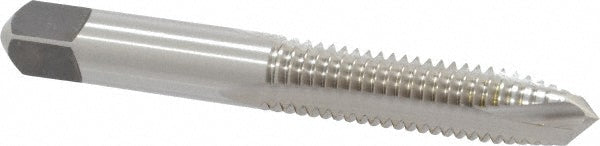

The Cleveland C57160 is a 5/16-24 UNF High Speed Steel tap. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel
Neck length in29/64
Number of flutes2
Overall length in2-23/32
OversizeNo; Yes
Shank diameter0.3180
Square size (mm)6.05
Threads per inch24
Thread directionRight Hand
Thread length in11/16
Thread limitH3
Thread size in5/16-24
Thread standardUNF
