Cleveland
5/16-24 UNF High Speed Steel Tap - Cleveland C57162
MFR# C57162Series 1012
$16.29List $20.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size5/16-24
Description

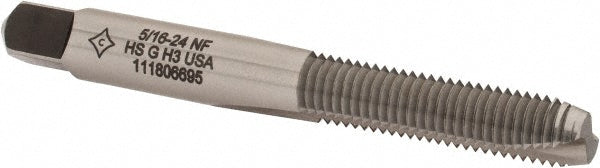

The Cleveland C57162 is a 5/16-24 UNF High Speed Steel tap. 2 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAluminum; Copper Alloys; Low Carbon Steel; Magnesium
Neck length in29/64
Number of flutes2
Overall length in2-23/32
OversizeNo
Shank diameter0.3180
Square size (mm)6.05
Threads per inch24
Thread directionRight Hand
Thread length in11/16
Thread limitH3
Thread size in5/16-24
Thread standardUNF
