Cleveland

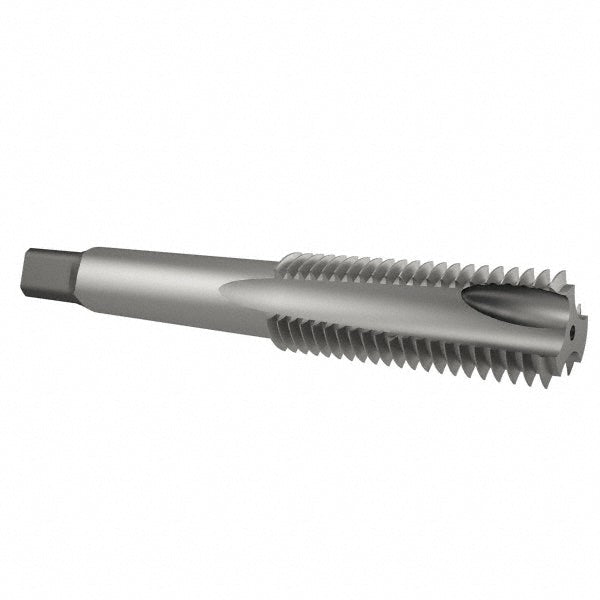

3/4-10 UNC High Speed Steel Tap - Cleveland C57247
MFR# C57247Series 1011
$78.78List $101.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/4-10
Description
The Cleveland C57247 is a 3/4-10 UNC High Speed Steel tap. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B/3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel
Neck length0.7900
Number of flutes3
Overall length in4-1/4
OversizeNo
Shank diameter0.5900
Square size (mm)11.23
Threads per inch10
Thread directionRight Hand
Thread length in1-7/32
Thread limitH5
Thread size in3/4-10
Thread standardUNC
