Cleveland

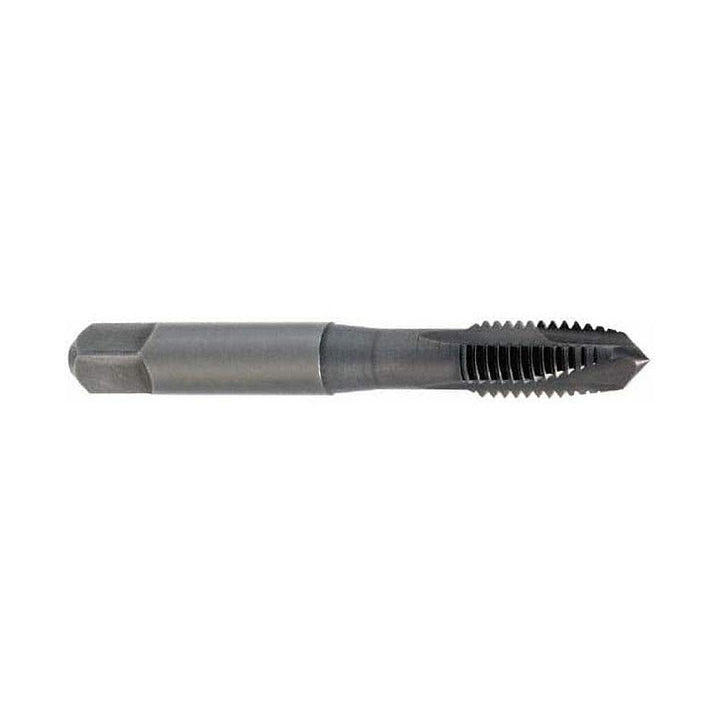

1/4-20 UNC High Speed Steel Tap, Oxide - Cleveland C57620
MFR# C57620Series 1011BO
$15.05List $19.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingOxide
Description
The Cleveland C57620 is a 1/4-20 UNC High Speed Steel tap with a Oxide finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishOxide
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Steel
Number of flutes3
OversizeNo
Shank diameter0.2550
Square size (mm)4.85
Threads per inch20
Thread directionRight Hand
Thread length1.0000
Thread limitH3
Thread size in1/4-20
Thread standardUNC
