Cleveland

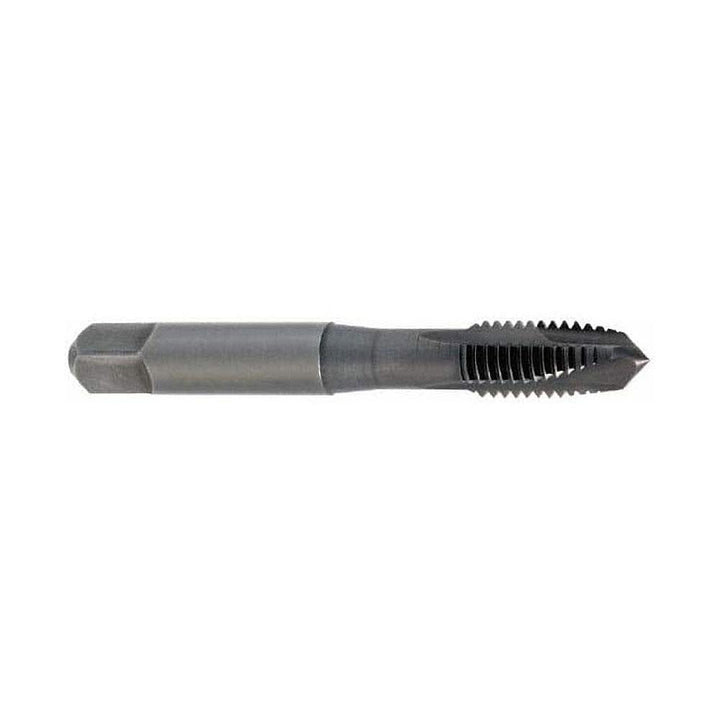

5/16-18 UNC High Speed Steel Tap, Oxide - Cleveland C57624
MFR# C57624Series 1011BO
$12.62List $16.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size5/16-18
CoatingOxide
Description
The Cleveland C57624 is a 5/16-18 UNC High Speed Steel tap with a Oxide finish. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishOxide
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Steel
Number of flutes2
Overall length in2-23/32
OversizeNo
Shank diameter0.3180
Square size (mm)6.05
Threads per inch18
Thread directionRight Hand
Thread length in1-1/8
Thread limitH3
Thread size in5/16-18
Thread standardUNC
