Cleveland

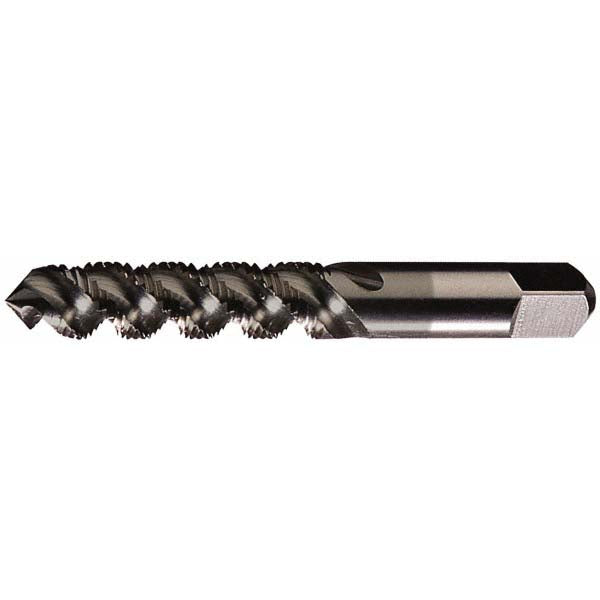

#6-32 UNC High Speed Steel Tap, Oxide - Cleveland C58433
MFR# C58433Series 1094BO
$23.15List $29.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#6-32
CoatingOxide
Description
The Cleveland C58433 is a #6-32 UNC High Speed Steel tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle52
MaterialHigh Speed Steel
Material applicationAluminum & Non-Ferrous Metal; Steel
Neck length0.3200
Number of flutes3
Overall length in2
OversizeNo
Shank diameter0.1410
Square length0.1875
Square size0.1100
Threads per inch32
Thread directionRight Hand
Thread length0.3800
Thread limitH3
Thread size in#6-32
Thread standardUNC
