Cleveland

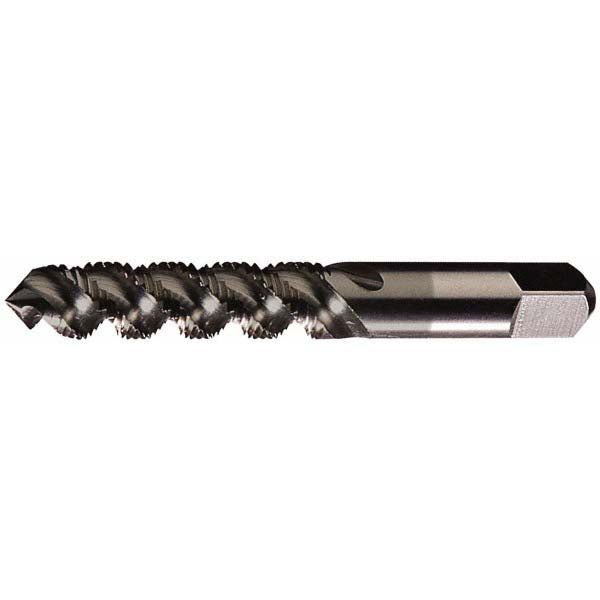

#10-24 UNC High Speed Steel Tap, Oxide - Cleveland C58436
MFR# C58436Series 1093BO
$25.07List $32.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
CoatingOxide
Description
The Cleveland C58436 is a #10-24 UNC High Speed Steel tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferPlug
Class of fit2B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle52
MaterialHigh Speed Steel
Material applicationAluminum & Non-Ferrous Metal; Steel
Neck length0.3900
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.1940
Square length0.2500
Square size0.1520
Threads per inch24
Thread directionRight Hand
Thread length0.5000
Thread limitH3
Thread size in#10-24
Thread standardUNC
