Cleveland

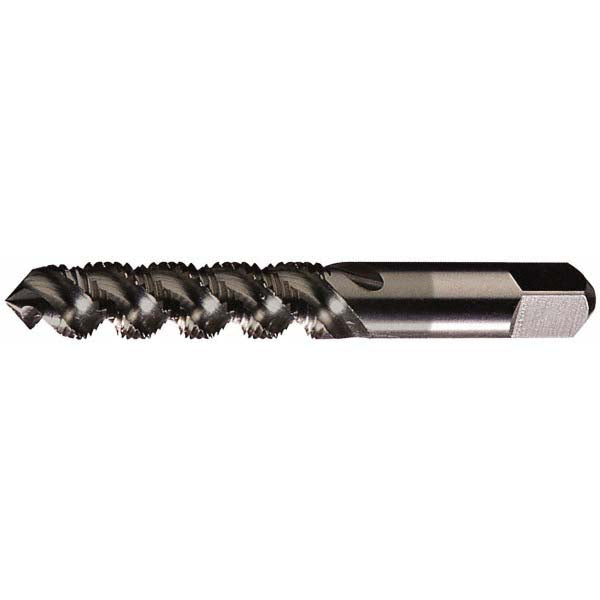

#10-24 UNC High Speed Steel Tap, Oxide - Cleveland C58437
MFR# C58437Series 1094BO
$25.25List $31.82
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
CoatingOxide
Description
The Cleveland C58437 is a #10-24 UNC High Speed Steel tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle52
MaterialHigh Speed Steel
Material applicationAluminum & Non-Ferrous Metal; Steel
Neck length0.3900
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.1940
Square length0.2500
Square size0.1520
Threads per inch24
Thread directionRight Hand
Thread length0.5000
Thread limitH3
Thread size in#10-24
Thread standardUNC
