Cleveland

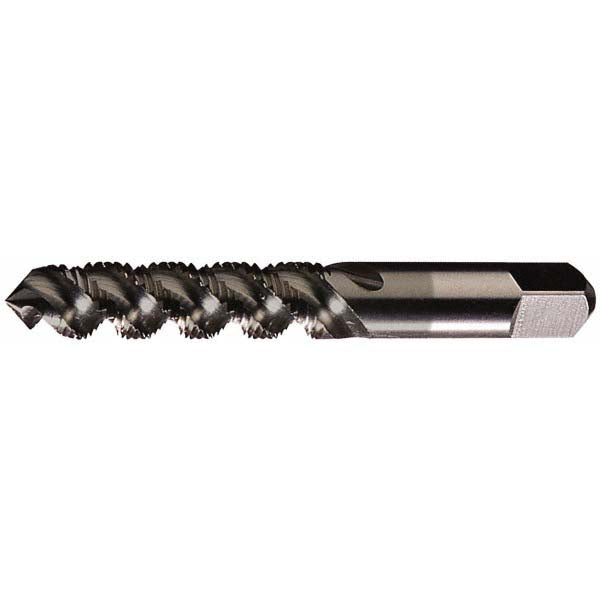

1/4-20 UNC High Speed Steel Tap, Oxide - Cleveland C58440
MFR# C58440Series 1093BO
$25.23List $31.79
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingOxide
Description
The Cleveland C58440 is a 1/4-20 UNC High Speed Steel tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferPlug
Class of fit2B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle52
MaterialHigh Speed Steel
Material applicationAluminum & Non-Ferrous Metal; Steel
Neck length0.3900
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square length0.3125
Square size0.1910
Threads per inch20
Thread directionRight Hand
Thread length0.6300
Thread limitH3
Thread size in1/4-20
Thread standardUNC
