Cleveland

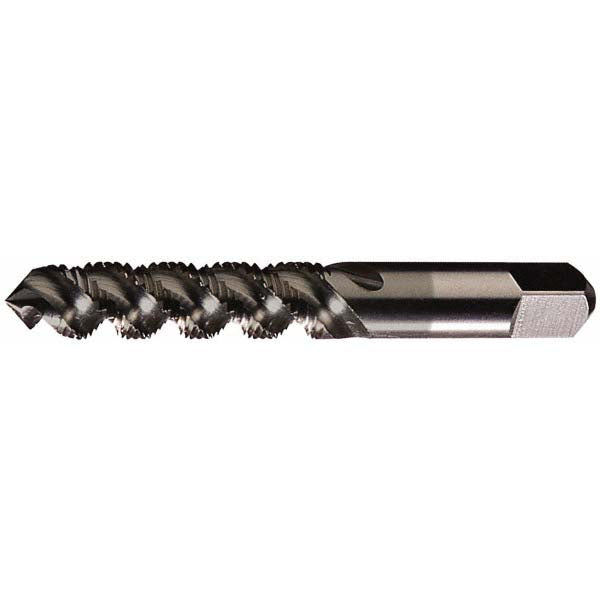

5/16-18 UNC High Speed Steel Tap, Oxide - Cleveland C58445
MFR# C58445Series 1094BO
$31.02List $39.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingOxide
Description
The Cleveland C58445 is a 5/16-18 UNC High Speed Steel tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle52
MaterialHigh Speed Steel
Material applicationAluminum & Non-Ferrous Metal; Steel
Neck length0.4500
Number of flutes3
Overall length in2-23/32
OversizeNo
Shank diameter0.3180
Square length0.3750
Square size0.2380
Threads per inch18
Thread directionRight Hand
Thread length0.6900
Thread limitH3
Thread size in5/16-18
Thread standardUNC
